What is Cat.6A Ethernet Cabling?

In the era defined by AI-driven computation and the explosion of high-speed networking, the demand for reliable, high-bandwidth infrastructure has reached an unprecedented peak. As enterprises increasingly depend on data-intensive applications, cloud computing, and advanced technologies like AI and IoT, network infrastructure must modernize to keep up the pace. As the backbone of modern enterprise networks, Cat.6A Ethernet cabling represents a significant leap forward over its predecessors—supporting 10Gbps speeds over full 100-meter distances while offering superior noise barrier.

Decoding Cat.6A Core Specifications: Why Is It the Backbone of High-Speed Networks?

The defining characteristic of Cat.6A is its 500 MHz bandwidth capability, which is double that of Cat.6 (250 MHz). This enhanced bandwidth directly transcends the limitations of Cat.6, which can only sustain 10 Gbps up to 55 meters. Cat.6A ensures a stable 10 Gbps transmission speed across the full 100-meter channel.

Key Electrical Performance Indicators

• Alien Crosstalk (AXT): Cat.6A significantly reduces the interference between adjacent cables—a critical factor for preventing signal loss in high-density environments like AI server clusters.
• Insertion Loss (IL): It minimizes signal degradation over distance, ensuring a robust signal reaches the terminal even at the 100-meter limit.
• Return Loss (RL): Precision manufacturing tolerances reduce signal reflection, enhancing overall link quality.
• Ultra-Low Delay Skew (≤ 45 ns): This is vital for real-time AI inference and synchronized audio/video applications.

Physical Structure and Wire Gauge (AWG)

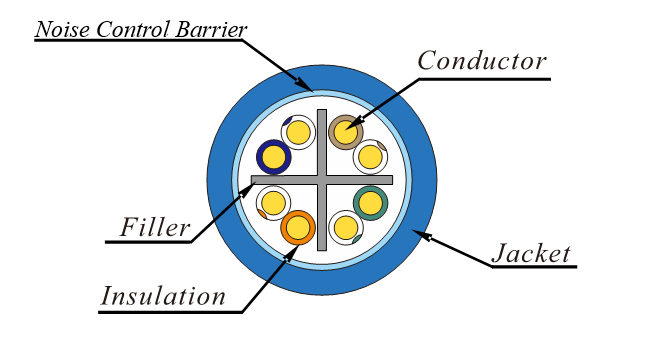

• 23 AWG Solid Conductors: Offer lower resistance and superior signal integrity. They are particularly ideal for high-power PoE++ (90W) applications due to their superior thermal management.

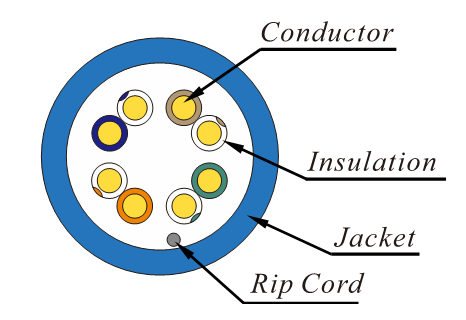

• 28 AWG Stranded Conductors: Designed for high flexibility, these cables save rack space and improve airflow, making them perfect for short-distance patch cords.




Environmental Selection Guide: How to Choose the Right Cat.6A Construction

Fire Safety and Jacket Ratings

• CMP (Plenum): Designed for ceiling and elevated spaces (plenums); features high flame retardancy and low-smoke properties.
• CMR (Riser): Runs between floors in non-plenum areas.
• LSZH (Low Smoke Zero Halogen): Produces no toxic halogens when exposed to heat, enhancing safety in confined spaces like subways and medical facilities.
• CMX (Outdoor): With UV-resistant characteristic and designed to withstand outdoor exposure.

Key Considerations for Enterprise Procurement of Cat. 6A Cabling

1. Certification and Compliance: Verify that the cable jacket is marked "Cat.6A" and explicitly cites compliance with ANSI/TIA-568.2-D or ISO/IEC 11801 standards.
2. Third-Party Laboratory Certification: Reputable manufacturers should carry UL or ETL certification marks to validate their performance and safety claims.
3. Manufacturer Consistency: Selecting a manufacturer with a robust, proven process (like Wonderful Hi-Tech) ensures that every cable in a large-scale deployment meets the same high standards.
4. Total Cost of Ownership (TCO): Investing in high-quality cables can prevent costly replacements due to insufficient bandwidth in the future.

Why Choose Wonderful Hi-Tech?

• World-Class Certifications: Our entire product range is certified by UL, ETL, and 3P, Force.
• Commitment to Sustainability: We actively implement ESG plans, developing low-carbon technologies and eco-friendly materials.
• Comprehensive Solutions: We provide a full spectrum of cabling solutions, from Cat.5e to Cat.8, covering both indoor and outdoor applications.



For specific project requirements or further consultation, explore our extensive product resources or contact our Professional Support Team.
